RRT Planner

Implementation of RRT Motion Planning

• This is a project I completed in the summer of 2018, under Karen and Sipu’s help, in Johns Hopkins University.
• This can be found on my github page.
• This is an implementation of Rapid-exploring Random Tree Algorithm on ROS, in 2D plane and the robot, obstacles and world are all in a shape of ellipsoid. The main language is C++.

Motion Planning with RRT

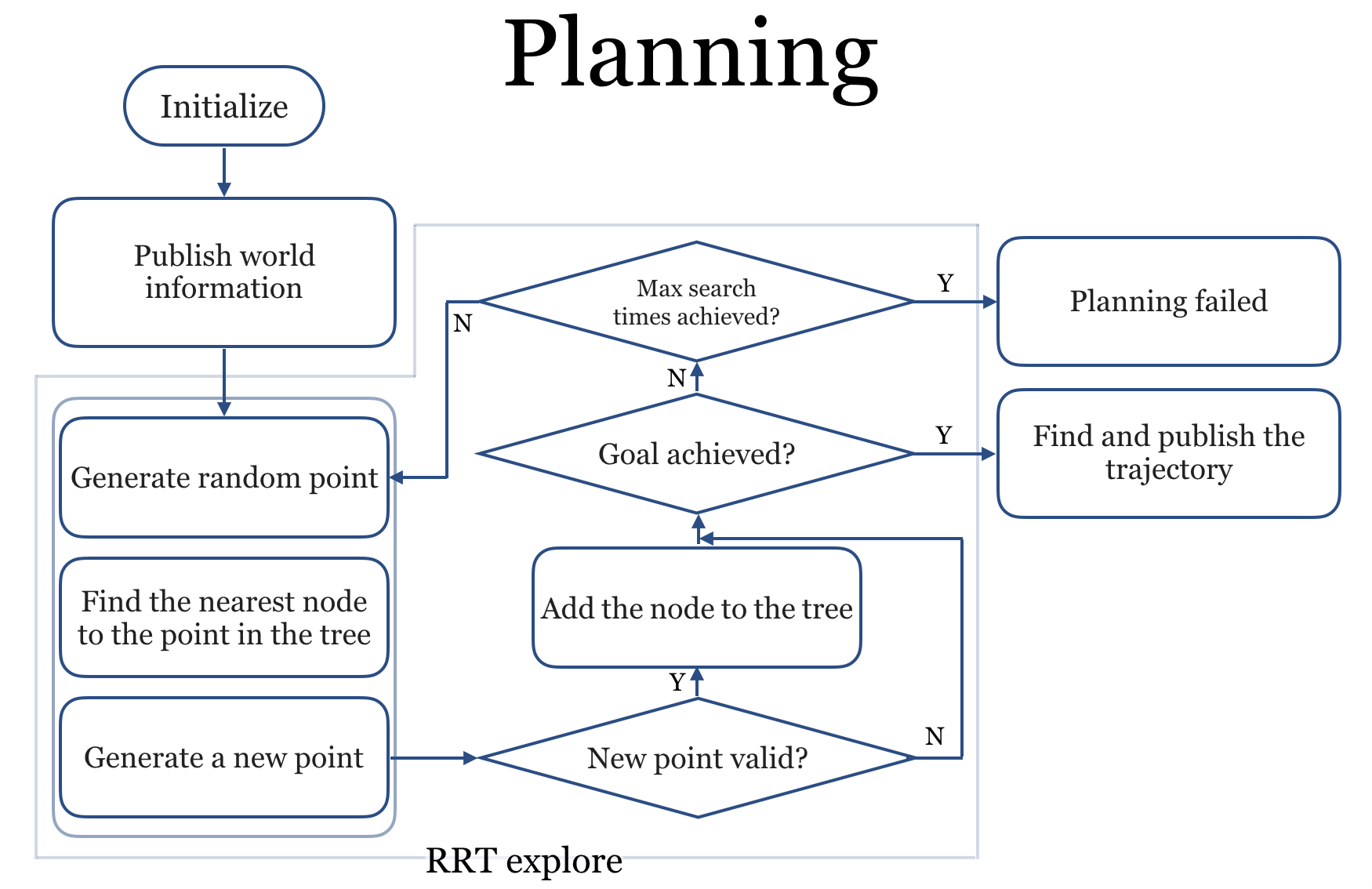

The procedure of RRT planner is described below:

• Initialize: build a RRT tree whose root is the start point (in a n-dimension space) of the motion. Every node in the tree represents a “valid” point in the C-Space, which means under that position the robot is not in collision.

• Explore the C-Space and grow the tree: (loop)

  • Generate a random pose of the ellipsoid robot ($q_{rand}$)
  • Traverse all the node in the tree and find a $q_{nearest}$ , which is nearest to the $q_{rand}$
  • Generate a new point $q_{new}$ which is between $q_{nearest}$ and $q_{rand}$ and is a metric away from $q_{nearest}$
  • IF ( $q_{new}$ is valid ) THEN { add $q_{new}$ to the tree}. Once the goal is achieved or the search time is more than the set upper limit, the search should be terminated.


• Find the trajectory from the generated tree, if the goal is successfully achieved. Dijkstra Algorithm can be used.

• Smooth the trajectory.

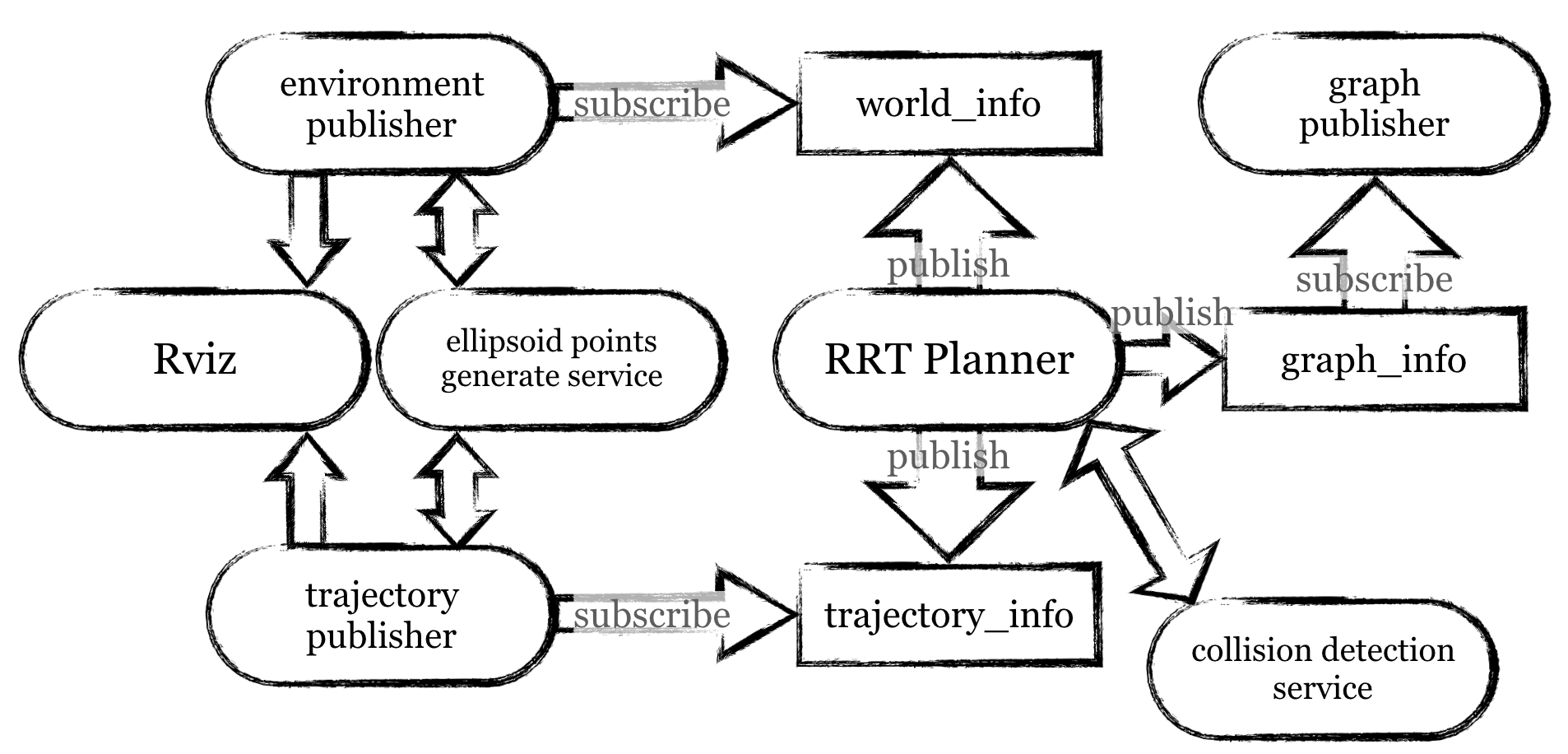

The Structure of My ROS Package

msg

• ellipsoid.msg: ellipsoid semi-axes length, central point ordinates value, angle
• world.msg: describe the arena, obstacles and robot with ellipsoid message
• position.msg: (x, y, 𝜙) value describing the ellipsoid pose
• point.msg: (x, y) value describing the 2D point
• trajectory.msg: an array of (x, y) describing the points on the trajectory
• pointsArrary.msg: an array of (x, y) on the boundary of ellipsoid generated by the server
• node.msg: the x, y values of the valid searched node, father value represents the nearest node ID
• rrtGraph.msg: array of node

srv

• collision_detect.srv: return whether the state is in collision according to the world msg information and current robot position msg
• ellipsoid_points.srv: return a vector of point msg according to the ellipsoid msg and step

include/rrt_implement

• rrt.h: define the basic tree structure
• planner.h: define the planning action

src

• rrt.cpp
• planner.cpp: plan the motion. I use Euler distance to find the nearest node —— rrtPlanner
• collision_detect.cpp: provide the service of collision detection —— collision_detection_srv
• environment_publisher.cpp: subscribe the world information published by node rrtPlanner, and then send that to the server ellipsoid_point_gen_srv, publish the obtained 2D points to be plotted —— environment_pub
• graph_publisher.cpp: subscribe the graph information published by node rrtPlanner, and then publish—— graph_pub
• trajectory_publisher.cpp: subscribe the trajectory information published by node rrtPlanner, and then send that to the server ellipsoid_point_gen_srv, publish the obtained 2D points to be plotted —— trajectory_pub
• ellipsoid_point_gen.cpp: a server whose input is ellipsoid msg and position msg and output is pointsArray msg describing the boundary of the ellipsoid —— ellipsoid_point_gen_srv

Run the Demo

RVIZ configuratoin

Global Optional

• Fixed Frame = “/root”

Marker

• arena
• obstacle0
• obstacle1
• robot
• trajectory
• graph

Commands

after catkin_make && source devel/setup.bash

• run the server

rosrun rrt_implement ellipsoid_point_gen_srv
rosrun rrt_implement collision_detection_srv

• run the rrt planner

rosrun rrt_implement rrtPlanner

• run the publisher

rosrun rrt_implement environment_pub
rosrun rrt_implement trajectory_pub

• run rviz

rosrun rviz rviz

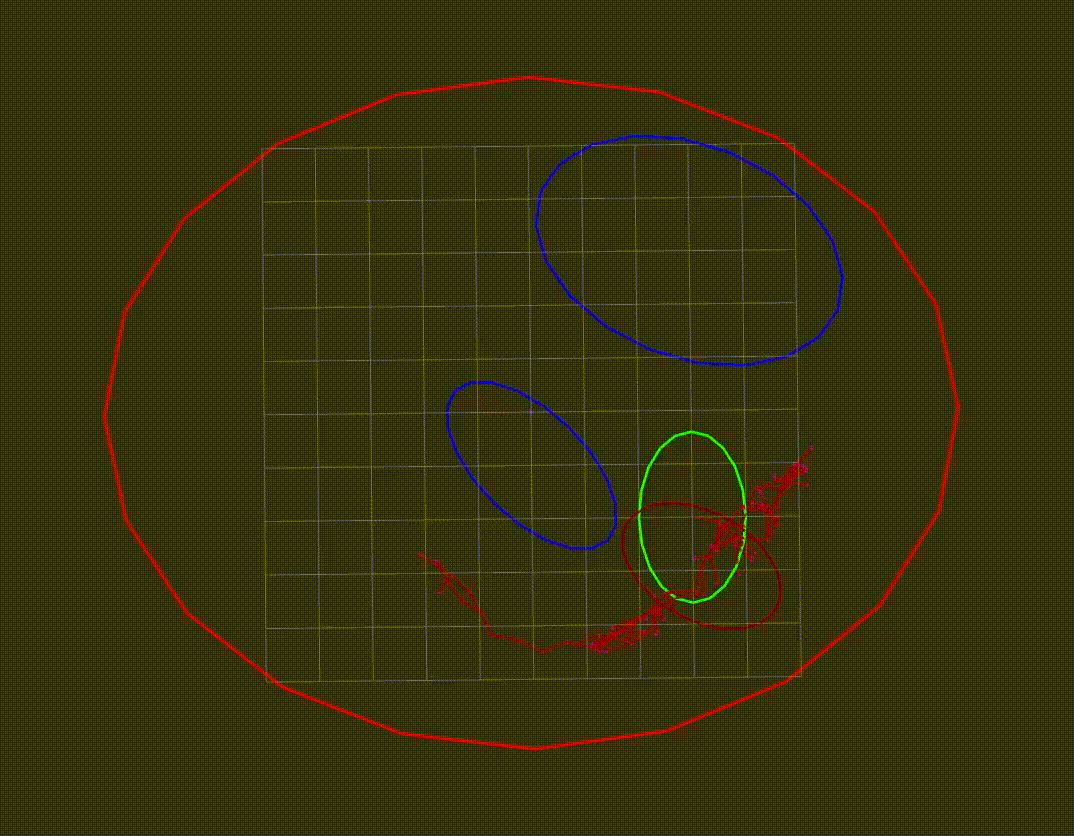

Running Result

Collision Detection

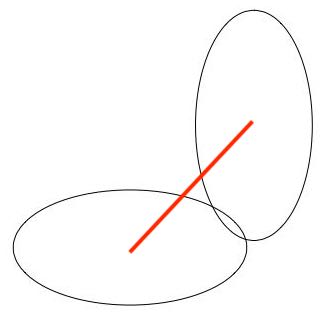

To achieve high speed, I did not call the collision detection libraries such as FCL. I just used a simple and rough method. Assume that $A$, $B$ is the center of two ellipsoids, respectively, and their distance is D. The “radius”s of the two ellipsoids in the direction of $\overrightarrow{AB}$ is $R$ and $r$, respectively. Thus, the requirement of the two ellipsoids is seperate is $D>R+r$; the requirement of the ellipsoid $B$ is in ellipsoid $A$ entirely is $D<R-r$.

As this is just the requirement, sometimes this method would fail.

Acknowledgement

• Thanks for Prof. Chirikjian‘s instruction.
• Thanks for Sipu Ruan and Karen Poblete Rodriguez‘s help.
